LBX2000 RF Shield Box

Home › Products › RF Shielded Test Enclosure › LBX2000 RF Shield Box

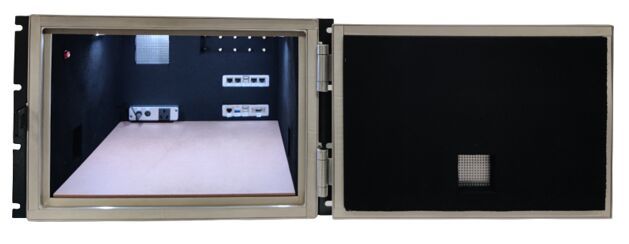

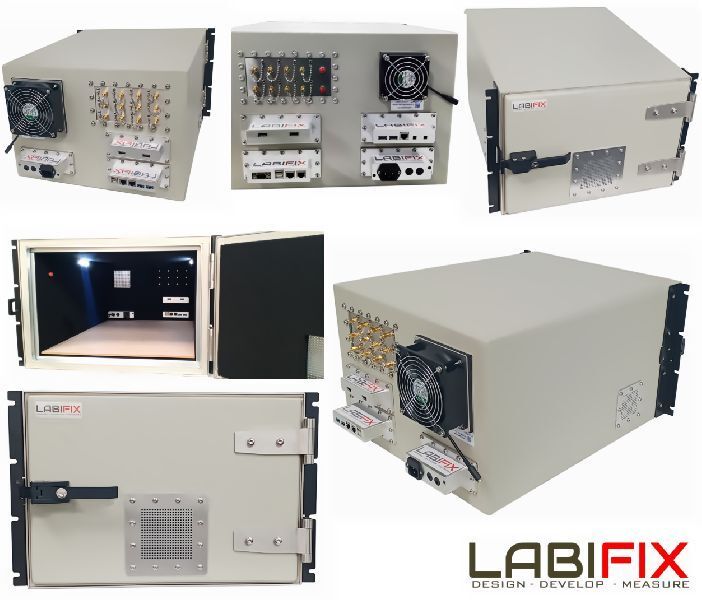

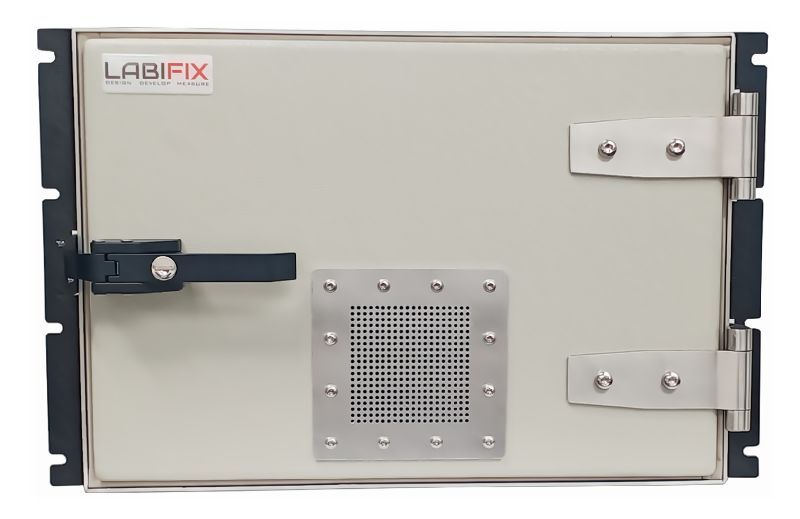

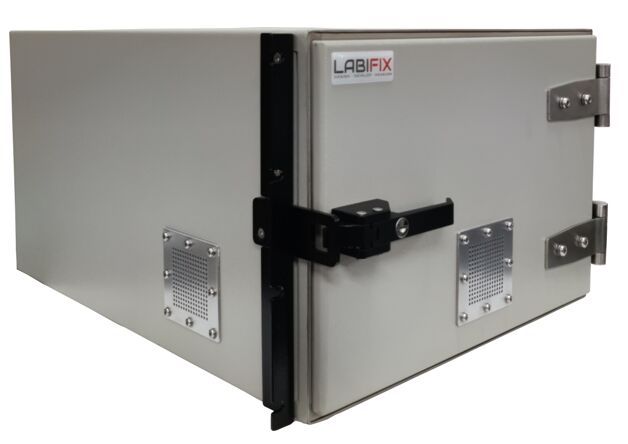

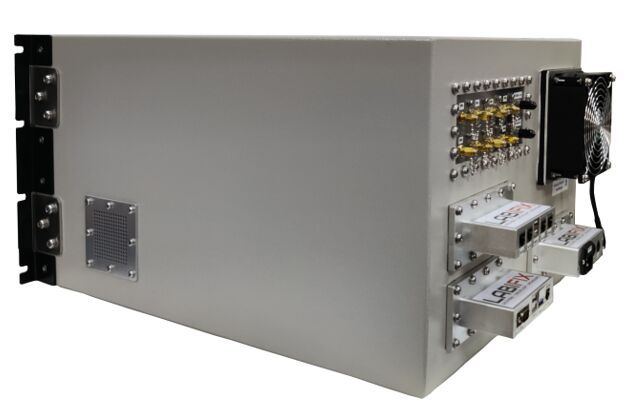

LBX2000 RF Shield Box
LBX2000 RF Shield Box
Price : 1.50 Lac / UnitGet Best Price

MOQ : 1 Piece

Business Type Manufacturer, Exporter, Supplier
Country of Origin India
Type Rf Shielded Enclosure
Material RF Shielding Material
Click to view more

Preferred Buyer From

Location Worldwide
Request to Call Send Enquiry

Product Details

Shape
Customised
Feature
Premium Quality
Open Style
Hinged
Installation
Customised
Brand Name
LabiFix Innovations
Application
Wireless Device Testing
Protection Level
>100dB
Power
230VAC
Warranty
1 Year
Certificate
CE Compliance & Quality Management System
Filtered Ethernet
10M, 100M, 1G
Filtered USB
2.0 & 3.0
Power filter
AC / DC
RF Ports
SMA, SMB, BNC, TNC, UHF
Fiber optics
ST & Waveguide
Data
DB9, DB15, DB25, DB50, RJ11
Brand
LabiFix Innovations
Exterior :
12H x 17W x 22D
Interior :
10H x 15W x 20D
Shielding Effectiveness
> 100dB @ 1 GHz > 95dB @ 3 GHz > 90dB @ 6 GHz
Operating Frequency Range
800MHz to 12GHz
Placement
Rack mountable
Ventilation
High performance shielded Air Vents for adequate air flow
Download
View
Port
Bangalore
Payment Terms
T/T
Delivery Time
30 Days
Packaging Details
Secure Corrugated Packaging Box and wooden pallet packing.

HIGHLIGHTS

  • Higher RF Isolation
  • Completely Customizable Shielded Enclosure
  • High Performance RF Absorber lining
  • User Defined & Interchangeable I/O Connector options
  • Rugged Welded Construction
  • EMI filters on Data Ports
  • RF Fitted Gasket System
  • Powered by AC / DC Power Filter lines
  • Lightweight Rack Mountable or Tabletop Options
  • High performance shielded Air Vents for adequate air flow



TECHNOLOGIES SUPPORT

  • Supports Current and future wireless communication
  • technologies such as 3G, 4G, 5G LTE
  • Wi-Fi 802.11 - all series
  • Wi-Max, GNSS, Bluetooth
  • EMI, RFI test
  • Devise Testing, over the air measurements, Pre-compliance
  • R&D, Product verification, Performance reliability, Quality
