LBX8000 RF Shielded Enclosure

LBX8000 RF Shielded Enclosure
Price : 5.90 Lac / 1-10Get Best Price

MOQ : 1 Piece

Business Type Manufacturer, Exporter, Supplier
Country of Origin India
Type Rf Shielded Enclosure, RF Shielded Box
Feature Easy To Install, Premium Quality
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Brand Name
LabiFix Innovations
Application
Wireless Testing Device
Protection Level
>100dB
Power
230VAC
Warranty
1 Year
Certificate
CE Compliance & Quality Management System
Filtered Ethernet
10M, 100M, 1G
Filtered USB
2.0 & 3.0
Powered by
AC / DC Power filter
RF Ports
SMA, N Type, BNC, TNC
Fiber optics
ST & Waveguide
Data
DB9, DB15, DB25, DB50, RJ11
Brand
LabiFix Innovations
Exterior :
30 H x 59 W x 37 D
Interior :
28 H x 57 W x 35 D
Shielding Effectiveness
> 100dB @ 1 GHz > 95dB @ 3 GHz > 90dB @ 6 GHz
Operating Frequency Range
800MHz to 12GHz
Download
Product Code
LBX8000
Port
Bangalore
Payment Terms
T/T
Delivery Time
30 Days
Packaging Details
Secure Corrugated Packaging Box and wooden pallet packing

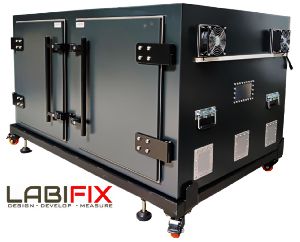

LBX8000 is large RF Shielded Test Enclosure Spacious to house multiple devices like laptops and

Desktop computers with optional compartments for easy placement of Device under test

designed to meet a wide range of testing requirements Superior shielding effectiveness

against RF interferences featuring with Filtered AC & DC power lines,

Filtered Data lines & RF connectors.



I/O Options, dimensions, performance, etc. can be customized to meet your needs.



HIGHLIGHTS

  • High performance shielded Air Vents for adequate air flow
  • Higher RF Isolation
  • Completely Customizable Shielded Enclosure
  • High Performance RF Absorber lining
  • User Defined & Interchangeable I/O Connector options
  • Rugged Welded Construction
  • EMI filters on Data Ports
  • RF Gasket System
  • Optional pneumatic Door operation system
  • Bench top or Trolley provision



TECHNOLOGIES SUPPORT

  • Supports Current and future wireless communication
  • technologies such as LTE, 5G
  • Wi-Fi 802.11 - all series
  • Wi-Max, GNSS, Bluetooth
  • EMI, RFI test
  • Device Testing, over the air measurements, Pre-compliance
  • R&D, Product verification, Performance reliability, Quality
  • assurance tests
Read More...
