LBX1300 WLAN Testing RF Shield Box

Home › Products › RF Shielded Test Enclosure › LBX1300 WLAN Testing RF Shield Box

LBX1300 WLAN Testing RF Shield Box
LBX1300 WLAN Testing RF Shield Box
image 1
image 2
image 3
image 4
image 5
LBX1300 WLAN Testing RF Shield Box
Price : 2.20 Lac - 2.50 Lac / piece
Get Best Price

MOQ : 1 Unit

Business Type Manufacturer, Exporter
Type Rf Shielded Enclosure
Material RF Shielding Material
Shape Customizable
Click to view more

Preferred Buyer From

Location Worldwide
Request to Call Send Enquiry

Product Details

Feature
Easy To Install, Fine Finishing, Premium Quality
Finishing
Powder Coating
Open Style
Hinged
Country of Origin
India
Brand Name
LabiFix Innovations
Application
Wireless Device Testing
Protection Level
>90DB
Power
230AC
Warranty
1 Year
Certificate
CE Compliance & Quality Management System
Operating Frequency Range
800MHz to 12GHz
Power Input
Powered by AC / DC Power Filter lines
Fiber optics
ST and Waveguide
Data
Filtered Ethernet Filtered USB 2.0 & 3.0 & Filtered Db9 Serial Port
RF Ports
SMA, SMB, BNC, TNC, UHF,
Construction
Rugged Steel Welded Construction
Shielding Effectiveness
> 100dB @ 1 GHz > 95dB @ 3 GHz > 90dB @ 6 GHz
Product Code
LBX1300T
Port
Bangalore
Payment Terms
T/T
Delivery Time
4-5 Weeks
Packaging Details
We use export-quality inspection and fumigation wooden boxes with a strong construction, making sure that the shielding box will not be damaged in transport. The design is ideal for long distance transportation such as shipping on land or by sea, and can be shipped to any country around the world.

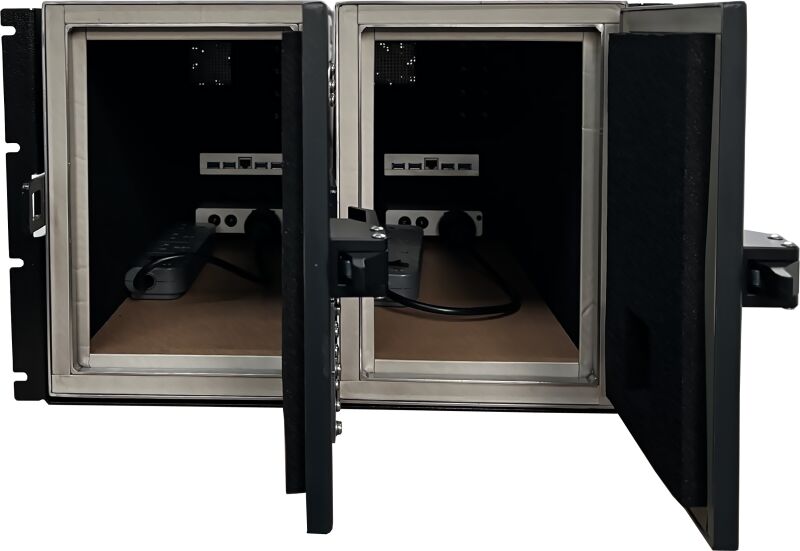

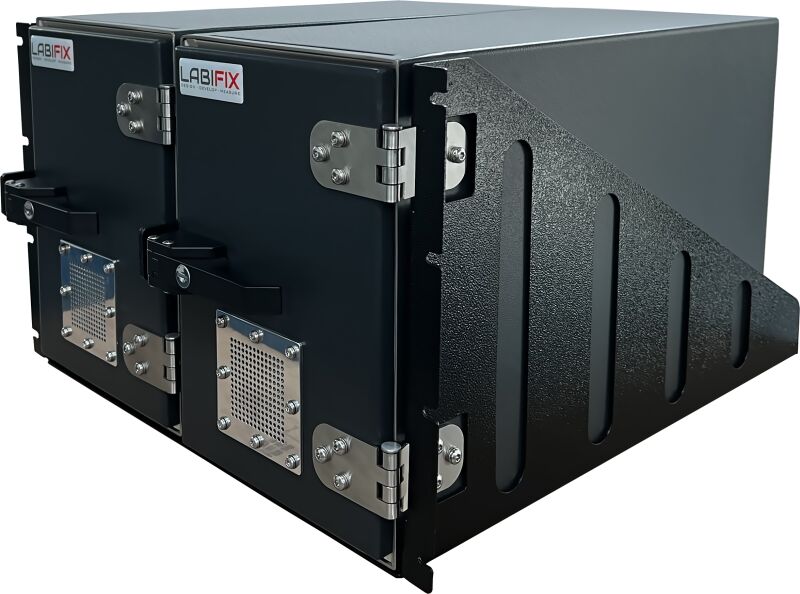

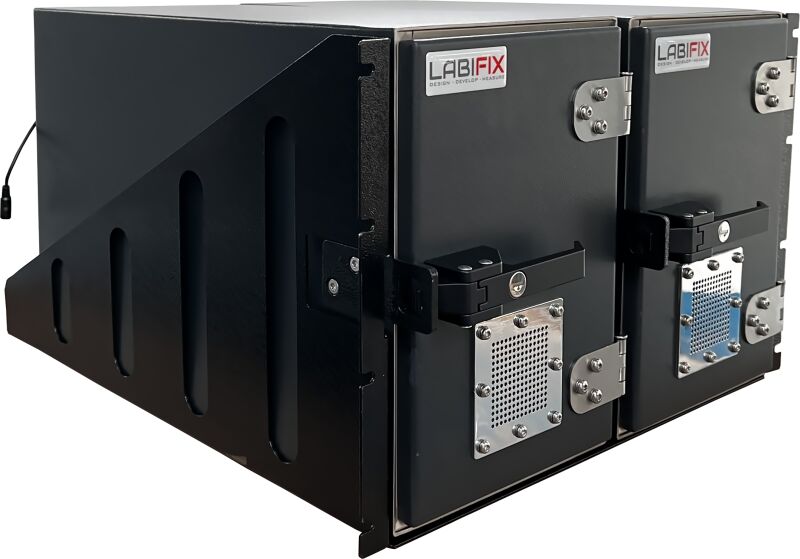

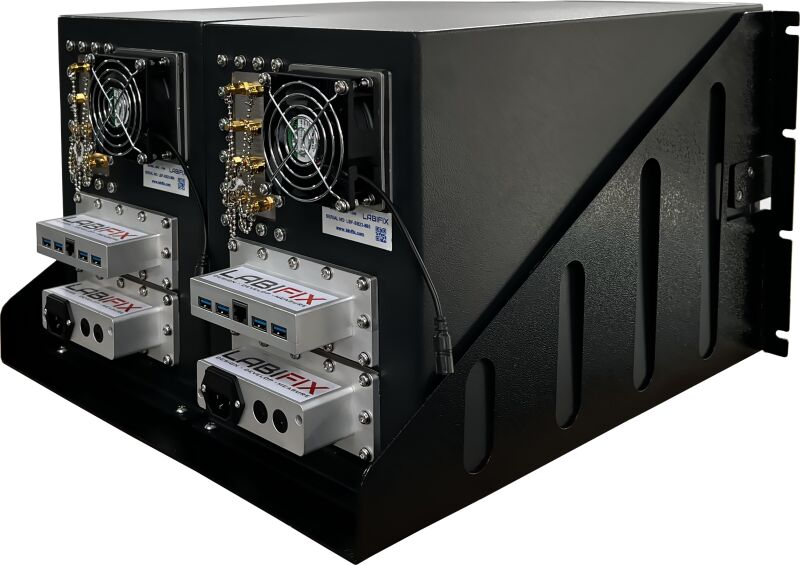

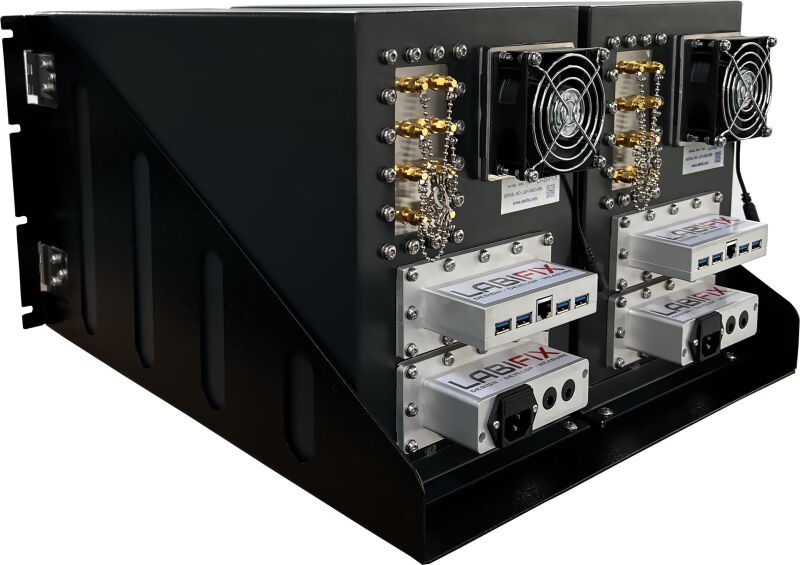

The LBX1300 is small, compact and Features twin RF shield boxes that help isolate and shield sensitive electronics devices from outside interference it's well suited for all types of tests, such as Cellular, Bluetooth, Wlan and other wireless device under test and can be customized to a customer’s specific requirements by designing the I/O connectors with any number of interchangeable plug-in RF modules. LBX1300 RF Shield box is available in 19” Rack mountable and standalone designs. The design of the enclosure offers flexibility for our customers to choose from a wide range of options.
