Dasarahalli, Bangalore, Karnataka
- GST NO. : 29AAECL2328R1ZX
2.80 Lac - 3 Lac / 1-10
| Business Type | Manufacturer, Exporter |
| Download |  View |
| Country of Origin | India |
| Type | Rf Shielded Enclosure |
| Click to view more | |
Product Details
Material
RF Shielding Material
Shape
Customised
Color
Customised
Feature
Easy To Install, Fine Finishing, Premium Quality
Finishing
Powder Coating
Open Style
Hinged
Installation
Customised
Brand Name
LabiFix Innovations
Application
Wireless Device Testing
Protection Level
>100dB
Power
230VAC
Warranty
1 Year
Certificate
CE Compliance & Quality Management System
Filtered Ethernet
10M, 100M, 1G
Filtered USB
2.0 & 3.0
Ac / Dc
Power Filter
RF Ports
SMA, SMB, BNC, TNC, UHF
Fiber optics
ST and Waveguide
Data
DB9, DB15, DB25, DB50, RJ11
Exterior :
38H x 24W x 25D
Interior :
36H x 22W x 23D
Shielding Effectiveness
> 100dB @ 1 GHz > 95dB @ 3 GHz > 90dB @ 6 GHz
Operating Frequency Range
800MHz to 12GHz
Ventilation
High performance shielded Air Vents for adequate air flow
Product Code
LBX7000
Port
Bangalore
Payment Terms
T/T
Delivery Time
30 Days
Packaging Details
We use export-quality inspection and fumigation wooden boxes with a strong construction, making sure that the shielding box will not be damaged in transport. The design is ideal for long distance transportation such as shipping on land or by sea, and can be shipped to any country around the world.

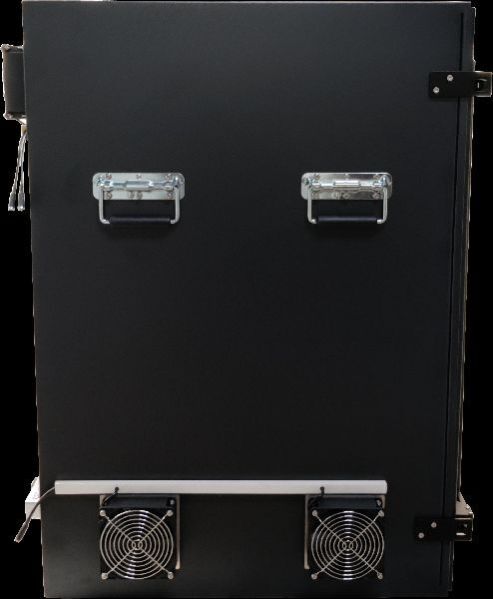

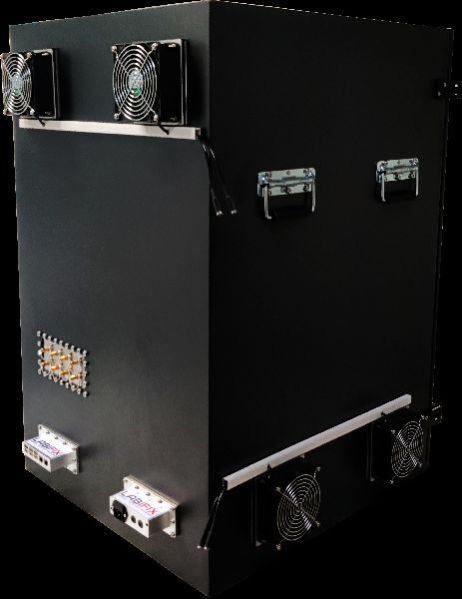

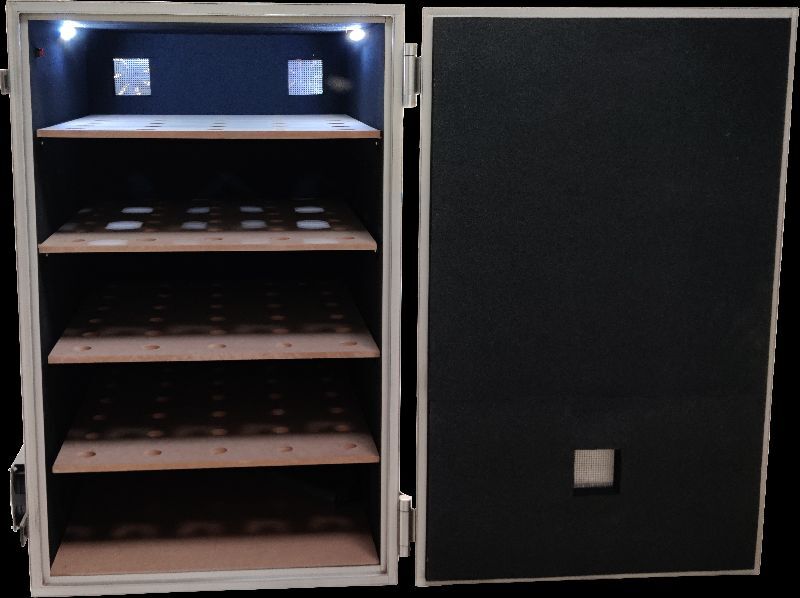

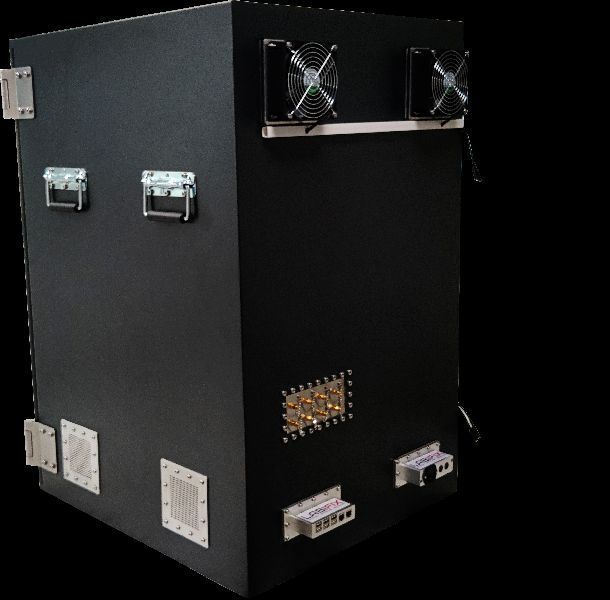

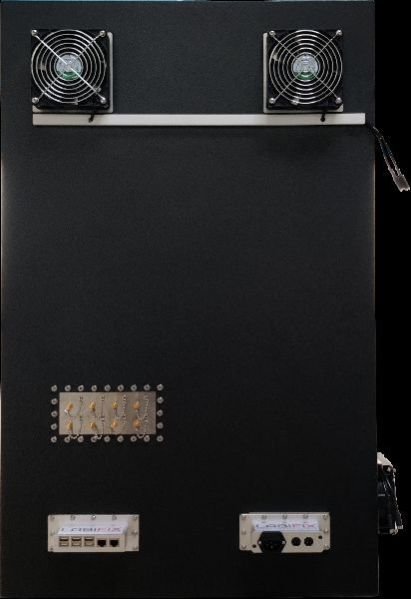

LBX7000 is large RF Shielded Test Enclosure Spacious to house multiple devices like laptops and
Desktop computers with optional compartments for easy placement of Device under test
designed to meet a wide range of testing requirements Superior shielding effectiveness
against RF interferences featuring with Filtered AC & DC power lines,
Filtered Data lines & RF connectors.
I/O Options, dimensions, performance, etc. can be customized to meet your needs.
HIGHLIGHTS
- Higher RF Isolation
- Completely Customizable Shielded Enclosure
- High Performance RF Absorber lining
- User Defined & Interchangeable I/O Connector options
- Rugged Welded Construction
- EMI filters on Data Ports
- RF Fitted Gasket System
- Powered by AC / DC Power Filter lines
- Lightweight Rack Mountable or Tabletop Options
- High performance shielded Air Vents for adequate air flow
TECHNOLOGIES SUPPORT
- Supports Current and future wireless communication
- technologies such as 3G, 4G, 5G LTE
- Wi-Fi 802.11 - all series
- Wi-Max, GNSS, Bluetooth
- EMI, RFI test
- Devise Testing, over the air measurements, Pre-compliance
- R&D, Product verification, Performance reliability, Quality

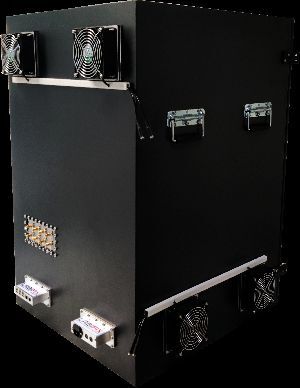

Looking for "LBX7000 RF Electronics, EMC, Immunity, and R&D Shielded Test Enclosure" ?
