Dasarahalli, Bangalore, Karnataka
- GST NO. : 29AAECL2328R1ZX
1.65 Lac - 2.60 Lac / Unit
| Business Type | Manufacturer, Exporter |
| Download |  View |
| Country of Origin | India |
| Type | Rf Shielded Enclosure |
| Click to view more | |
Product Details
Application
Wireless Device Testing
Power
230VAC
Warranty
1 Year
Brand Name
LabiFix Innovations
Filtered Ethernet
10M, 100M, 1G
Filtered USB
2.0 & 3.0
Power filter
AC / DC
RF Ports
SMA, SMB, BNC, TNC, UHF,
Fiber optics
ST & Waveguide
Data
DB9, DB15, DB25, DB50, RJ11
Exterior :
15H x 22W x 18D
Interior :
13H x 20W x 16D
Shielding Effectiveness
> 100dB @ 1 GHz > 95dB @ 3 GHz > 90dB @ 6 GHz
Operating Frequency Range
800MHz to 12GHz
Construction
Rugged Steel Welded Construction
Ventilation
High performance shielded Air Vents for adequate air flow
Product Code
LBX3200
Port
Bangalore
Payment Terms
T/T
Delivery Time
30 Days
Packaging Details
We use export-quality inspection and fumigation wooden boxes with a strong construction, making sure that the shielding box will not be damaged in transport. The design is ideal for long distance transportation such as shipping on land or by sea, and can be shipped to any country around the world.

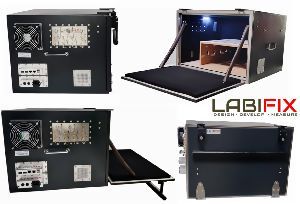

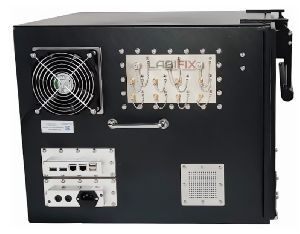

The LBX3200 RF Shielded Box is designed to isolate and shield sensitive electronic devices from outside interference, making it ideal for wireless device testing purposes. Its rugged steel construction and heavy duty hinges ensure it will last for years of use. With various IO RF connectors, data port, and power options, plus high grade RF absorber materials helps dampen the signal inside the RF chamber, the LBX3200 RF Shield box can be customized for various requirements. This RF box is ideal for engineers to create an inexpensive manual test environment with each validation needs to isolate their device from outside interference.
HIGHLIGHTS
- Higher RF Isolation
- Completely Customizable Shielded Enclosure
- High Performance RF Absorber lining
- User Defined & Interchangeable I/O Connector options
- Rugged Welded Construction
- EMI filters on Data Ports
- RF Fitted Gasket System
- Powered by AC / DC Power Filter lines
- Lightweight Rack Mountable or Tabletop Options
- High performance shielded Air Vents for adequate air flow
TECHNOLOGIES SUPPORT
- Supports Current and future wireless communication
- technologies such as 3G, 4G, 5G LTE
- Wi-Fi 802.11 - all series
- Wi-Max, GNSS, Bluetooth
- EMI, RFI test
- Devise Testing, over the air measurements, Pre-compliance
- R&D, Product verification, Performance reliability, Quality
