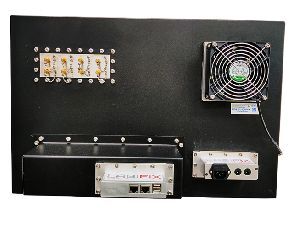

lbx4700 excellent shielding performance rf isolation enclosure

lbx4700 excellent shielding performance rf isolation enclosure
Price : 2.89 Lac - 3.15 Lac / piece
Get Best Price

MOQ : 1 Piece

Business Type Manufacturer, Exporter
Country of Origin India
Type RF Shielded Enclosure
Material RF Shielding Material
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Shape
Customised
Certification
ISO 9001:2008
Finishing
Powder Coating
Mounting Type
Rack Mount
Filtered Ethernet
10M, 100M, 1G
Filtered USB
2.0 & 3.0
Power Filter
Ac / Dc
RF Ports
SMA, SMB, BNC, TNC, UHF
Fiber optics
ST and Waveguide
Data
DB9, DB15, DB25, DB50, RJ11
Brand Name
Labifix
Exterior :
16 x 24W x19D
Interior :
14H x 22W x 17D
Shielding Effectiveness
> 100dB @ 1 GHz > 95dB @ 3 GHz > 90dB @ 6 GHz
Construction
Rugged Steel Welded Construction
Operating Frequency Range
800MHz to 12GHz
Download
Product Code
LBX4700
Port
Bangalore
Payment Terms
T/T
Delivery Time
30 Days
Packaging Details
We use export-quality inspection and fumigation wooden boxes with a strong construction, making sure that the shielding box will not be damaged in transport. The design is ideal for long distance transportation such as shipping on land or by sea, and can be shipped to any country around the world.

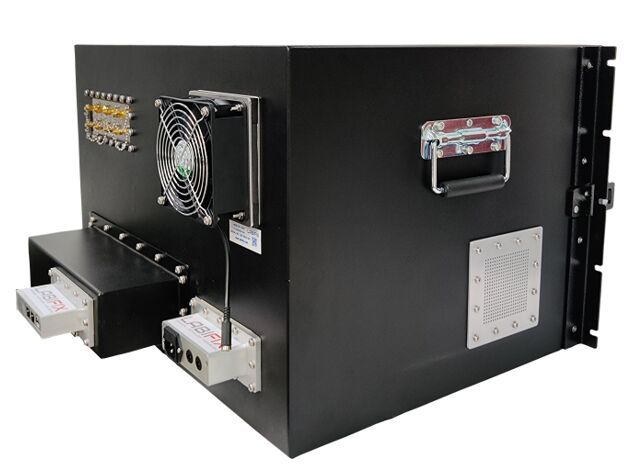

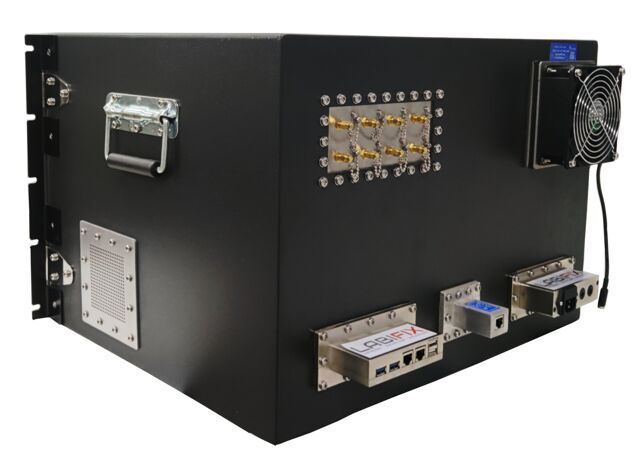

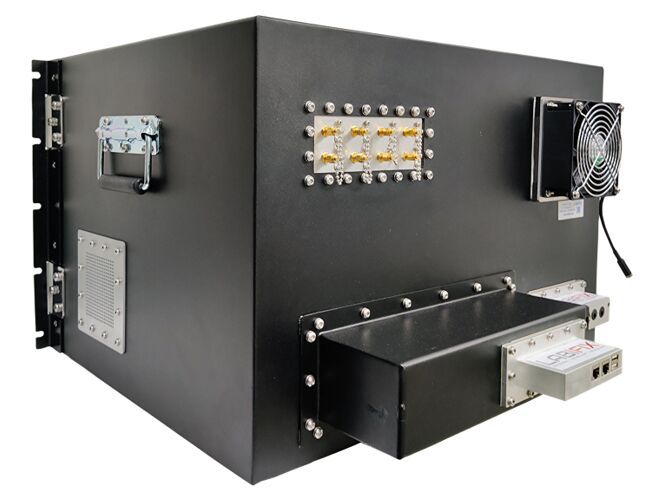

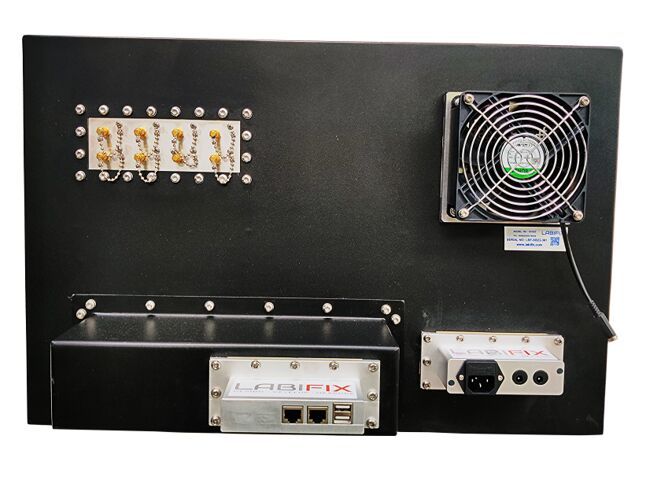

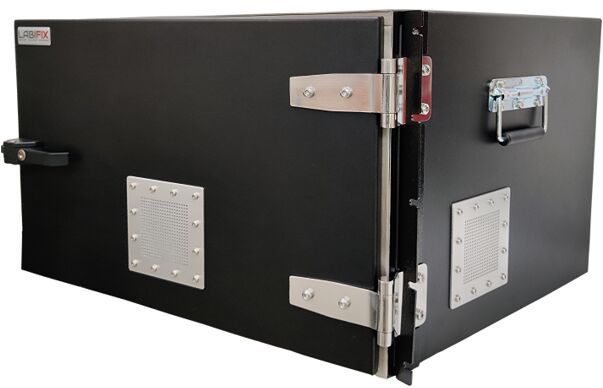

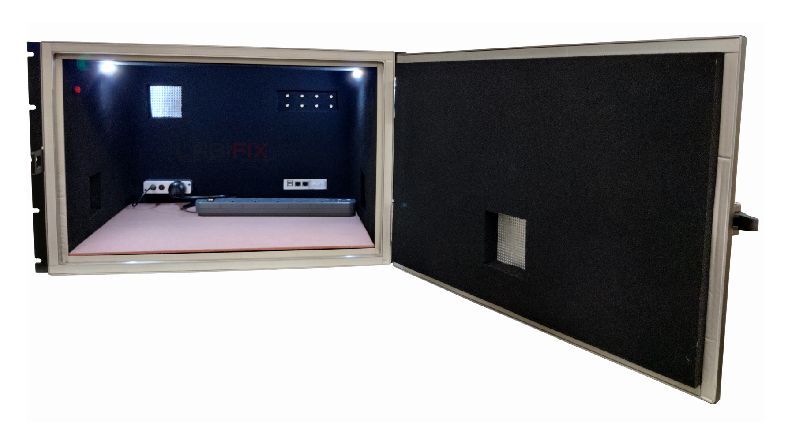

The LBX4700 shielded RF test box enables accurate measurements without interference from external sources. RF shielding test cases can be used for a variety of test applications such as product development, manufacturing and quality assurance. Maximum shielding efficiency against all types of EMI/RFI and noise, especially those emitted by modern wireless communication technologies such as Bluetooth, Zigbee, Wi-Fi, Cellular, IOT and R&D. A robust welded construction makes this RF shielding box particularly durable and reliable. Excellent shielding effect against RF interference with filtered AC power line and Data filters.

HIGHLIGHTS

  • Higher RF Isolation
  • Completely Customizable Shielded Enclosure
  • High Performance RF Absorber lining
  • User Defined & Interchangeable I/O Connector options
  • Rugged Welded Construction
  • EMI filters on Data Ports
  • RF Fitted Gasket System
  • Powered by AC / DC Power Filter lines
  • Lightweight Rack Mountable or Tabletop Options
  • High performance shielded Air Vents for adequate air flow



TECHNOLOGIES SUPPORT

  • Supports Current and future wireless communication
  • technologies such as 3G, 4G, 5G LTE
  • Wi-Fi 802.11 - all series
  • Wi-Max, GNSS, Bluetooth
  • EMI, RFI test
  • Devise Testing, over the air measurements, Pre-compliance
  • R&D, Product verification, Performance reliability, Quality
