LBX5000 Automotive & Medical Device Testing RF Shielded Enclosure

Home › Products › RF Shielded Test Enclosure › LBX5000 Automotive & Medical Device Testing RF Shielded Enclosure

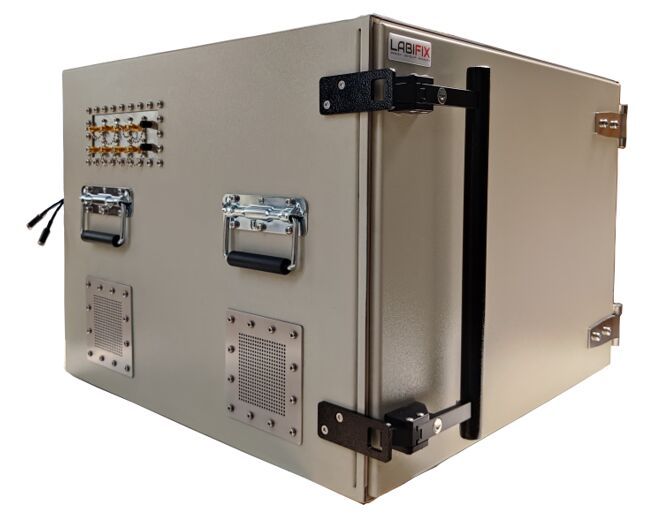

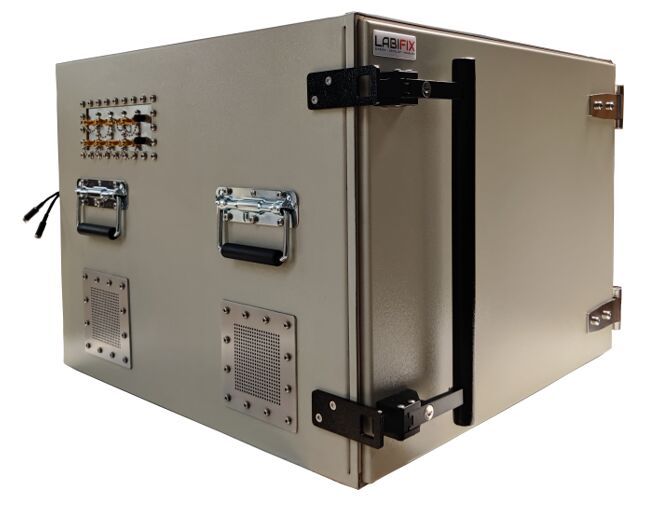

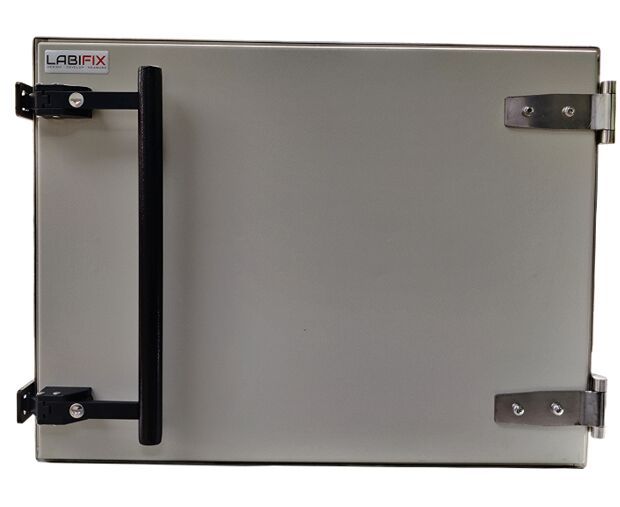

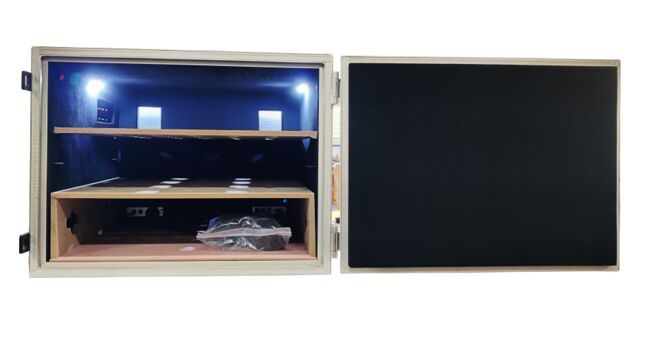

LBX5000 Automotive & Medical Device Testing RF Shielded Enclosure
LBX5000 Automotive & Medical Device Testing RF Shielded Enclosure
Price : 2.95 Lac - 3.10 Lac / 1-10
Get Best Price

MOQ : 1 Piece

Business Type Manufacturer, Exporter
Country of Origin India
Type Rf Shielded Enclosure
Material RF Shielding Material
Click to view more

Preferred Buyer From

Location Worldwide
Request to Call Send Enquiry

Product Details

Feature
Fine Finishing, Perfect Shape, Premium Quality
Finishing
Powder Coating
Open Style
Hinged
Installation
Customised
Brand Name
LabiFix Innovations
Application
Wireless Device Testing
Power
230VA/C
Warranty
1 Year
Certificate
CE Compliance & Quality Management System
Filtered Ethernet
10M, 100M, 1G
Filtered USB
2.0 & 3.0
Powered by
AC / DC Power filter
RF Ports
SMA, N Type, BNC, TNC
Fiber optics
ST & Waveguide
Data
DB9, DB15, DB25, DB50, RJ11
Exterior :
19H x 25W x 25D
Interior :
17H x 23W x 23D
Shielding Effectiveness
> 100dB @ 1 GHz > 100dB @ 3 GHz > 95dB @ 6 GHz
Construction
Rugged Steel Welded Construction
Operating Frequency Range
800MHz to 12GHz
Ventilation
High performance shielded Air Vents for adequate air flow
Download
View
Product Code
LBX-5000
Port
Bangalore
Payment Terms
T/T
Delivery Time
30 Days
Packaging Details
We use export-quality inspection and fumigation wooden boxes with a strong construction, making sure that the shielding box will not be damaged in transport. The design is ideal for long distance transportation such as shipping on land or by sea, and can be shipped to any country around the world.

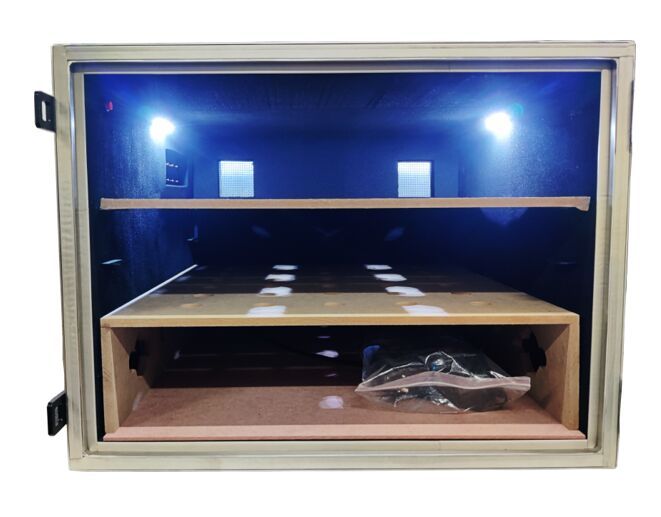

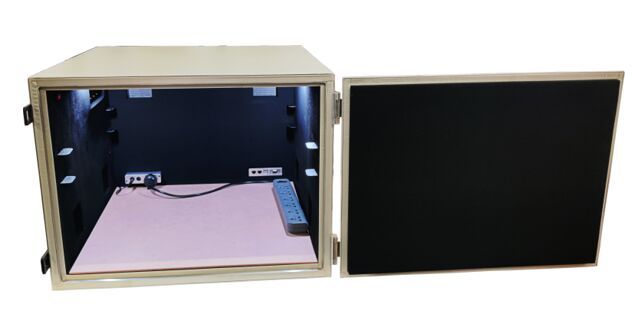

LBX5000 is large RF Shielded Test Enclosure Spacious to house multiple devices like laptops and

Desktop computers with optional compartments for easy placement of Device under test

designed to meet a wide range of testing requirements Superior shielding effectivenes

against RF interferences featuring with Filtered AC & DC power lines,

Filtered Data lines & RF connectors.

I/O Options, dimensions, performance, etc. can be customized to meet your needs.



HIGHLIGHTS

  • Higher RF Isolation
  • Completely Customizable Shielded Enclosure

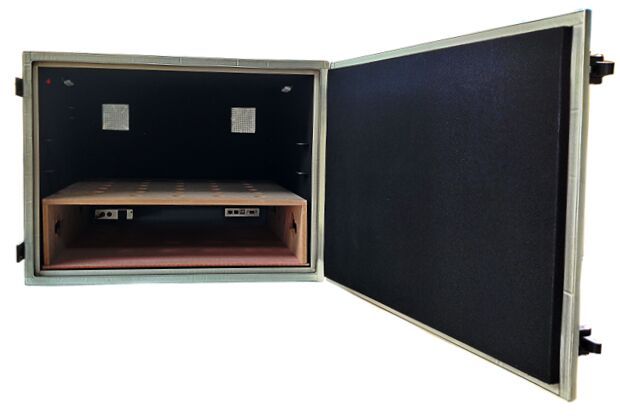

  • High Performance RF Absorber lining
  • User Defined & Interchangeable I/O Connector options
  • Rugged Welded Construction
  • EMI filters on Data Ports
  • RF Gasket System
  • Optional pneumatic Door operation system
  • Lightweight Rack Mountable or Tabletop Options

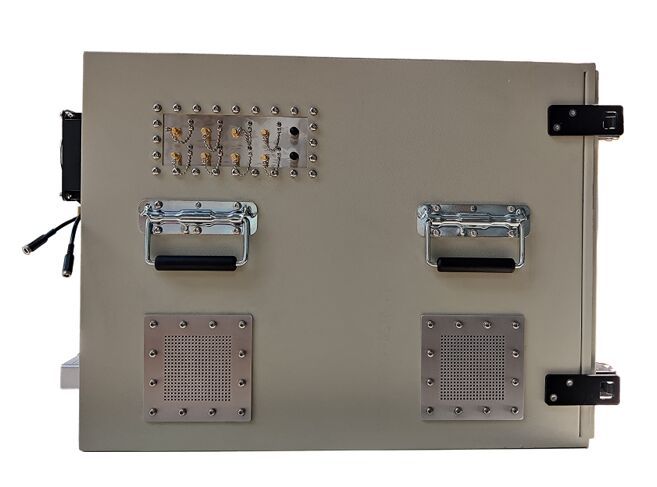

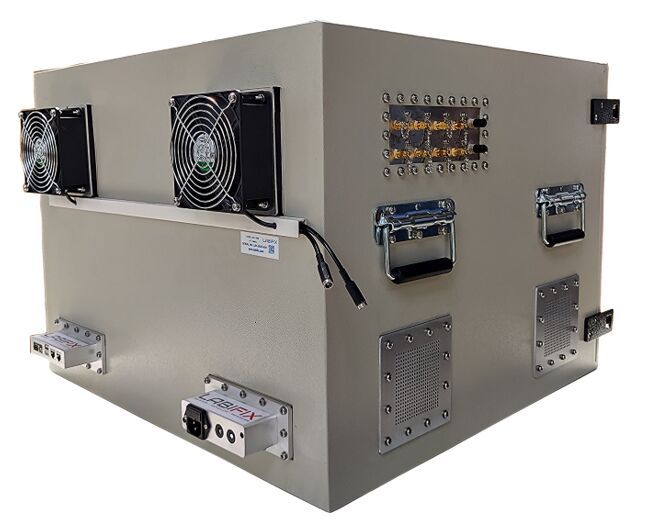

  • High performance shielded Air Vents for adequate air flow



TECHNOLOGIES SUPPORT

  • Supports Current and future wireless communication
  • technologies such as LTE, 5G
  • Wi-Fi 802.11 - all series
  • Wi-Max, GNSS, Bluetooth
  • EMI, RFI test
  • Device Testing, over the air measurements, Pre-compliance
  • R&D, Product verification, Performance reliability, Quality
  • assurance tests
