RF Shielded Enclosure LBX9000

Home › Products › RF Shielded Test Enclosure › RF Shielded Enclosure LBX9000

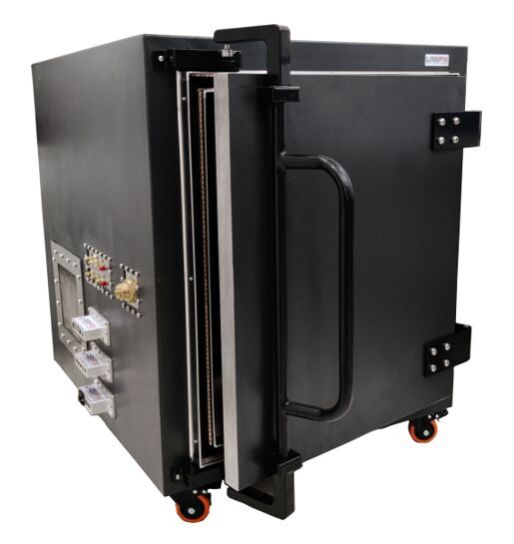

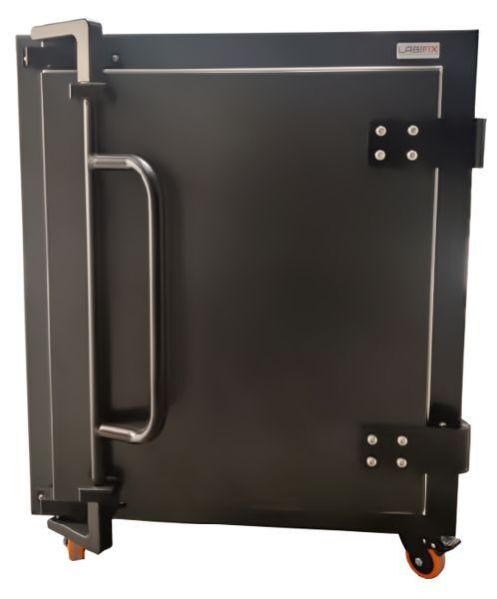

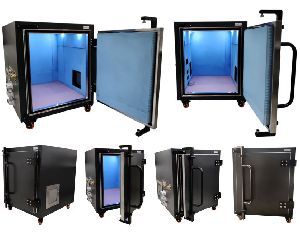

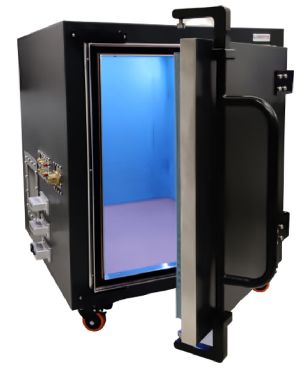

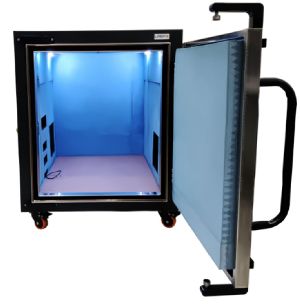

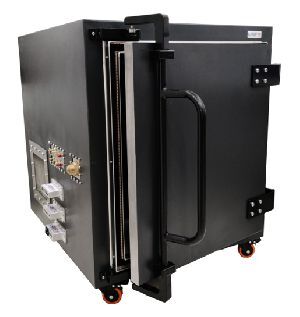

RF Shielded Enclosure LBX9000
RF Shielded Enclosure LBX9000
Price : 6.80 Lac / 1-10Get Best Price

MOQ : 1 Piece

Business Type Manufacturer, Exporter, Supplier
Type Rf Shielded Enclosure
Material RF Shielding Material
Shape Customized
Click to view more

Preferred Buyer From

Location Worldwide
Request to Call Send Enquiry

Product Details

Color
Customized
Width
31 Inche
Open Style
Hinged
Height
34 Inch
Country of Origin
India
Brand Name
LabiFix Innovations
Application
Wireless testing, Digital forensics, R&D, EMC Testing
Power
230VAC
Warranty
1 Year
Filtered Ethernet
10M, 100M, 1G
Filtered USB
2.0 & 3.0
Powered by
AC / DC Power filter
RF Ports
SMA, N Type, BNC, TNC
Fiber optics
ST & Waveguide
Data
Db9, Db15, Db25, Db50, Rj11
Brand
LabiFix Innovations
Shielding Effectiveness
> 100dB @ 1 GHz > 95dB @ 3 GHz > 90dB @ 6 GHz
Operating Frequency Range
800MHz to 12GHz
Input /Output Configuration
Completely Customizable I/O Connector options
Ventilation
High performance shielded Air Vents for adequate air flow
Exterior
34 H x 31 W x 34 D Inch
Interior
32 H x 29 W x 32 D Inch
Download
View
Product Code
LBX9000
Port
Bangalore
Payment Terms
T/T
Delivery Time
30 Days
Packaging Details
Secure Corrugated Packaging Box and wooden pallet packing

LBX9000 is large RF Shielded Test Enclosure Spacious to house multiple devices like laptops and

Desktop computers with optional compartments for easy placement of Device under test

designed to meet a wide range of testing requirements Superior shielding effectiveness

against RF interferences featuring with Filtered AC & DC power lines,

Filtered Data lines & RF connectors.



I/O Options, dimensions, performance, etc. can be customized to meet your needs.



HIGHLIGHTS

  • High performance shielded Air Vents for adequate air flow
  • Higher RF Isolation
  • Completely Customizable Shielded Enclosure
  • High Performance RF Absorber lining
  • User Defined & Interchangeable I/O Connector options
  • Rugged Welded Construction
  • EMI filters on Data Ports
  • RF Gasket System
  • Optional pneumatic Door operation system
  • Bench top or Trolley provision



TECHNOLOGIES SUPPORT

  • Supports Current and future wireless communication
  • technologies such as LTE, 5G
  • Wi-Fi 802.11 - all series
  • Wi-Max, GNSS, Bluetooth
  • EMI, RFI test
  • Device Testing, over the air measurements, Pre-compliance
  • R&D, Product verification, Performance reliability, Quality
  • assurance tests
