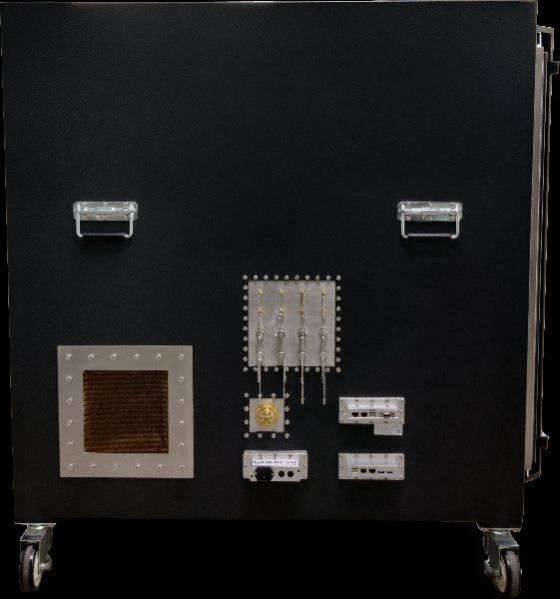

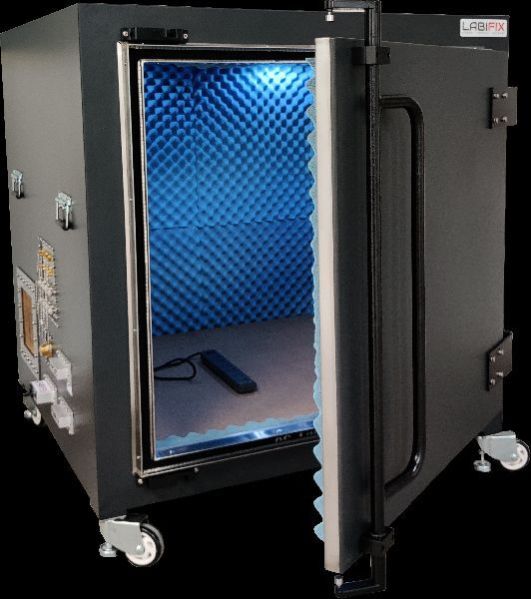

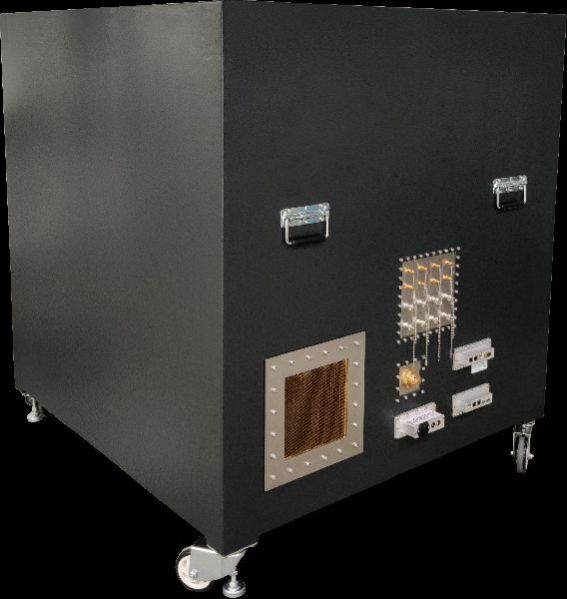

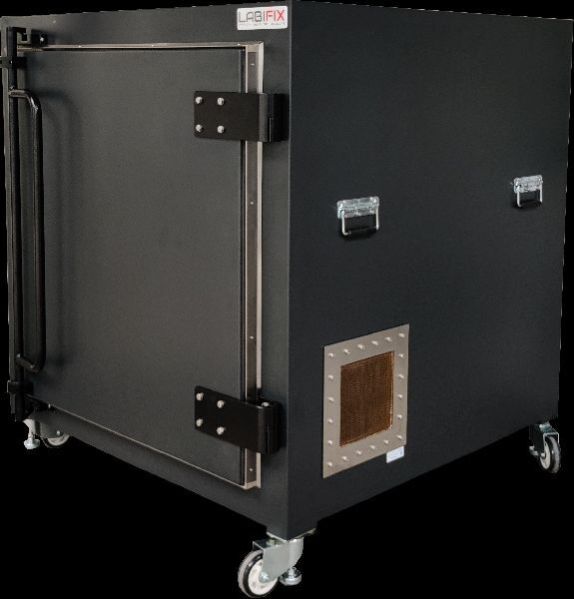

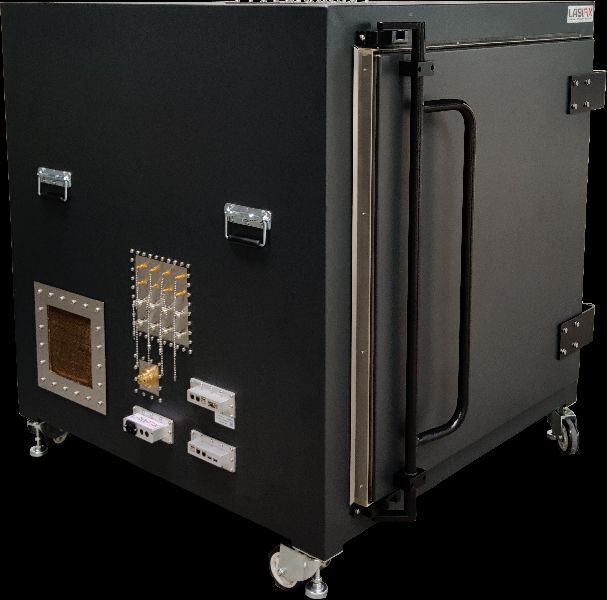

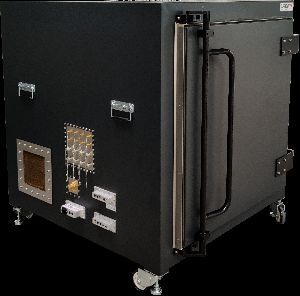

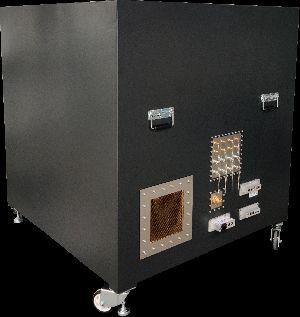

LBX9500 Modular MIMO OTA validate Shielded Enclosure

LBX9500 Modular MIMO OTA validate Shielded Enclosure
Price : 6 Lac - 6.20 Lac / piece
Get Best Price

MOQ : 1 Piece

Business Type Manufacturer, Exporter
Country of Origin India
Type RF Shielded Enclosure
Material RF Shielding Material
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Shape
Customised
Application
Wireless Device Testing
Feature
Fine Finishing, Premium Quality
Finishing
Powder Coating
Open Style
Hinged
Installation
Customised
Shielding Effectiveness
> 100dB @ 1 GHz > 100dB @ 3 GHz > 95dB @ 6 GHz
Construction
Rugged Steel Welded Construction
Operating Frequency Range
800MHz to 12GHz
Power Input
Powered by AC / DC Power Filter lines
Exterior
45"H x 45"W x 45"D
Interior
43"H x 43"W x 43"D
Fiber optics
ST and Waveguide
RF Ports
SMA, SMB, BNC, TNC, UHF,
Data
Filtered Ethernet Filtered USB 2.0 & 3.0 & Filtered Db9 Serial Port
Product Code
LBX9500
Port
Bangalore
Payment Terms
T/T
Delivery Time
4-5 Weeks
Packaging Details
We use export-quality inspection and fumigation wooden boxes with a strong construction, making sure that the shielding box will not be damaged in transport. The design is ideal for long distance transportation such as shipping on land or by sea, and can be shipped to any country around the world.

The LBX9500 Modular MIMO OTA validation Shielded Enclosure is a relatively inexpensive solution, but it has all of the features you need. It's also flexible, being able to host both medium size wireless devices and larger communications devices under test. Multiple RF ports and data transfer options along with AC power line filters are only some of its features. The LBX9500 rf chamber is easy to move around thanks to its bench top or trolley mount. With all of these features, RF engineers will have rf isolation chambers  to ensure that their test environment is stable.





Applications:



  • Wi-Fi 802.11 - all series

  • R&D and Quality assurance tests

  • Wireless Device Testing

  • EMI & EMC Testing

  • Bluetooth and ZigBee

  • Forensics and Security

  • Cellular 4G,5G, LTE, WiMAX

  • Wireless Medical device

  • Throughput Test

  • MIMO and OTA Testing

  • IOT, RFID and Wearable Devices





Highlights:



  • Excellent shielding performance

  • Completely Customizable Shielded Enclosure

  • High Performance RF Absorber lining

  • User Defined & Interchangeable I/O Connector options

  • Rugged Welded Construction

  • EMI filters on Data Ports

  • RF Fitted Gasket System

  • Powered by AC / DC Power Filter lines

  • Lightweight Rack Mountable or Table Top Options

  • Shielded Air Vents for adequate air flow
